The T-slot plate is supplied with a smooth, closed underside; this means that the plate can also be sucked onto a vacuum table. To attach it to a machine table/frame, simply drill holes at a suitable point. You have the flexibility to do this yourself, or you can use our service.

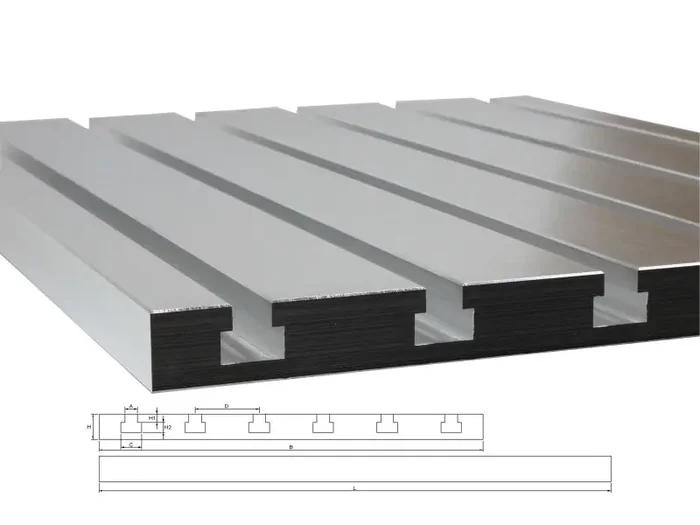

Technical data:
- Suitable for stones according to DIN 508
- Parallelism: +/- 0.01 mm /200 mm
- L= 650 mm
- B= 450 mm
- H= 20 mm
- H1= 7.5 mm
- H2= 8 mm
- D= 50 mm
- A= 10 mm
- C= 16 mm
We reserve the right to make technical changes
| Shipping weight: | 15,80 kg |
| Item weight: | 15,80 kg |
